Enduro Knightwalker 1/10 Off-Road Trail Truck RTR, Red
Enduro Knightwalker 1/10 Off-Road Trail Truck RTR, Red
Couldn't load pickup availability
1/10 Enduro Trail Truck, Knightwalker RTR, Red
A performance Rig built to endure! When hitting the trail, you want to do it with confidence -- and the answer is the Enduro Trail Truck!
Introduction
At the heart of the Enduro is our revolutionary Stealth X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR).
Knightwalker 4X4 Body Features
- Thermoformed high-strength polycarbonate body
- Two-piece cab and bed design with flared fenders
- Clear windows, headlights, and taillights
- Dropped bed design with roll cage and spare tire
- Injection-molded body accessories
- Highly detailed Injection-molded headlight and taillight buckets
- Officially licensed DeMello injection-molded front and rear bumpers
- Officially licensed KC HiLiTES light bar
- Officially licensed 1.9" x 4.19" General GrabberTM A/T X tires
- Officially licensed Method 701 Trail Series wheels
- Decal sheet with additional graphics and logos included
Additional Features
- BTA (behind the axle) steering
- Aluminum steering plates
- Integrated servo winch mount
- Threaded aluminum shock bodies
- Stealth X gearbox with adjustable overdrive gears
- CMS (Chassis Mounted Servo)
- Adjustable front track bar
- Universal front drive axles
- Stamped steel frame rails
- Enclosed receiver box
- 12mm wheel hexes
- Adjustable front and rear bumper mounts
- Adjustable width rock sliders
- Two battery boxes
- Aluminum motor plate
- Adjustable body posts
- Optimized ball cups for more fluid axle articulation
- Adjustable rear shock tower mount positions
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines
- One-piece rear axle design
- Splined front axle with adjustable caster
- Machined input pinion gear
Overview
At the heart of the Enduro is our revolutionary Stealth X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR).
Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.
Element relocated the steering link assembly from the conventional location to behind the axle (BTA). This feature greatly improves approach angle and front-end clearance, making rough terrain much easier to handle.
The Enduro Trail Truck with Knightwalker body comes ready for adventure right out of the box, with performance-driven Reedy Power electronics. The ultra-smooth, and powerful 16-turn, 5-slot Reedy brushed crawler motor and Reedy Power metal-gear, water-resistant servo supply ample power to this tough rig. Controlling the beast on the trail is our Flysky 2-in-1 radio and ESC combination.
With all this packed in one box, we know the Enduro Trail Truck is ready for the trail -- are you?
Body Features

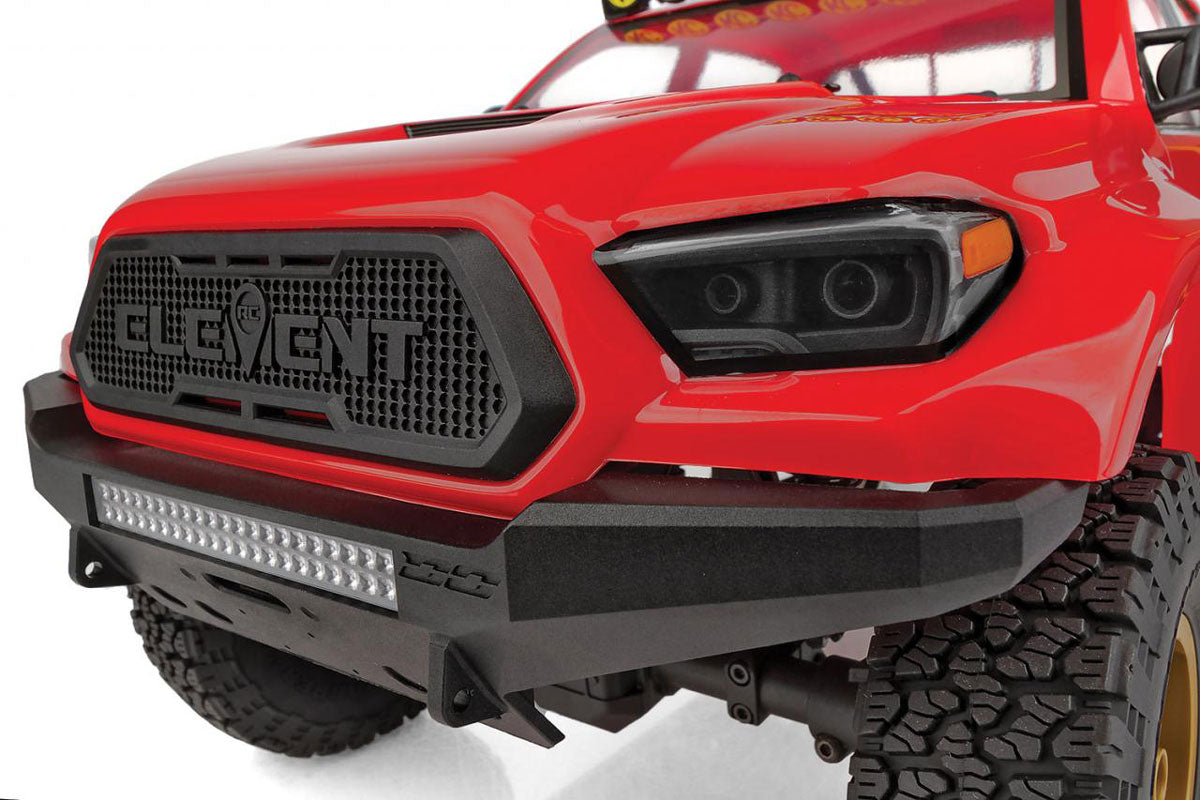

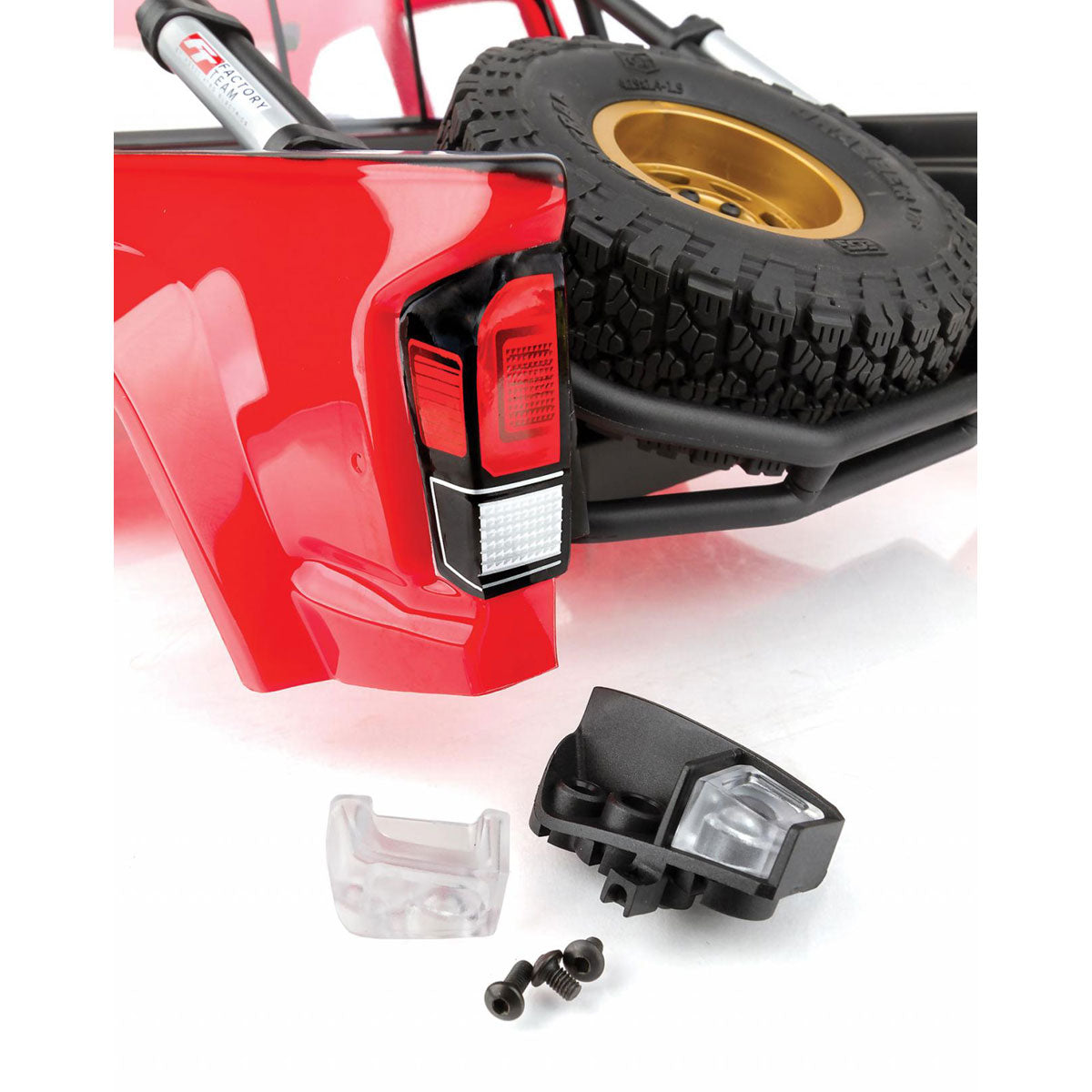

The Knightwalker 4X4 RTR features an injection-molded grill, mirrors, door handles, roll cage, light bar, as well as front and rear headlight buckets to heighten the scale realism of the thermoformed polycarbonate body designed by James Knight of Knight Customs. The extra decal sheet includes additional overlanding graphics and sponsor logos to outfit the Knightwalker 4X4 for a custom look.
Video Overview
BTA Steering And Aluminum Steering Plates
Behind-the-axle steering provides better approach angles, more clearance, and a cleaner look. Bolt-on aluminum steering plates allow for more adjustment, strength, and future modification for the user.
Integrated Servo Winch Mount
Mounting a winch directly to the chassis is the strongest and most reliable spot on any trail rig. Positioned alongside the steering servo for overall chassis balance and weight distribution.
Threaded Aluminum Shock Bodies
Threaded aluminum and fluid-filled, these shocks keep the vehicle stable on the trail and retain oil even in the roughest terrain.
Reedy Power Crawler Motor
The Reedy Power 5-slot 16-turn brushed crawler motor provides ample torque with a smooth power delivery. This allows for slow precise acceleration while maintaining consistent power over rough terrain and obstacles.
Electronic Speed Controller
The Knightwalker RTR comes equipped with a FLYSKY 2-in-1 brushed speed control and receiver unit with built-in LED lighting controller.
Radio And Servo
The Flysky FS-G4P, 2.4GHz, 4-channel radio and receiver with ANT protocol together with a Reedy Power 1523MG metal gear, water-resistant servo is the perfect setup for keeping the Enduro under control on the trail.
Officially Licensed Wheels And Tires
Gripping the trail is a set of officially licensed General Grabber A/T X tires molded in a high-performance, soft compound rubber. The General Grabber A/T X tires are mounted on Method 701 Trail Series beadlock wheels. No more worrying if your RTR tires will come unglued.
