Arrma SENTON 4x4 3s Brushless BLX100 ESC Speed Control senton typhon ARA4303V3

PRODUCT DESCRIPTION

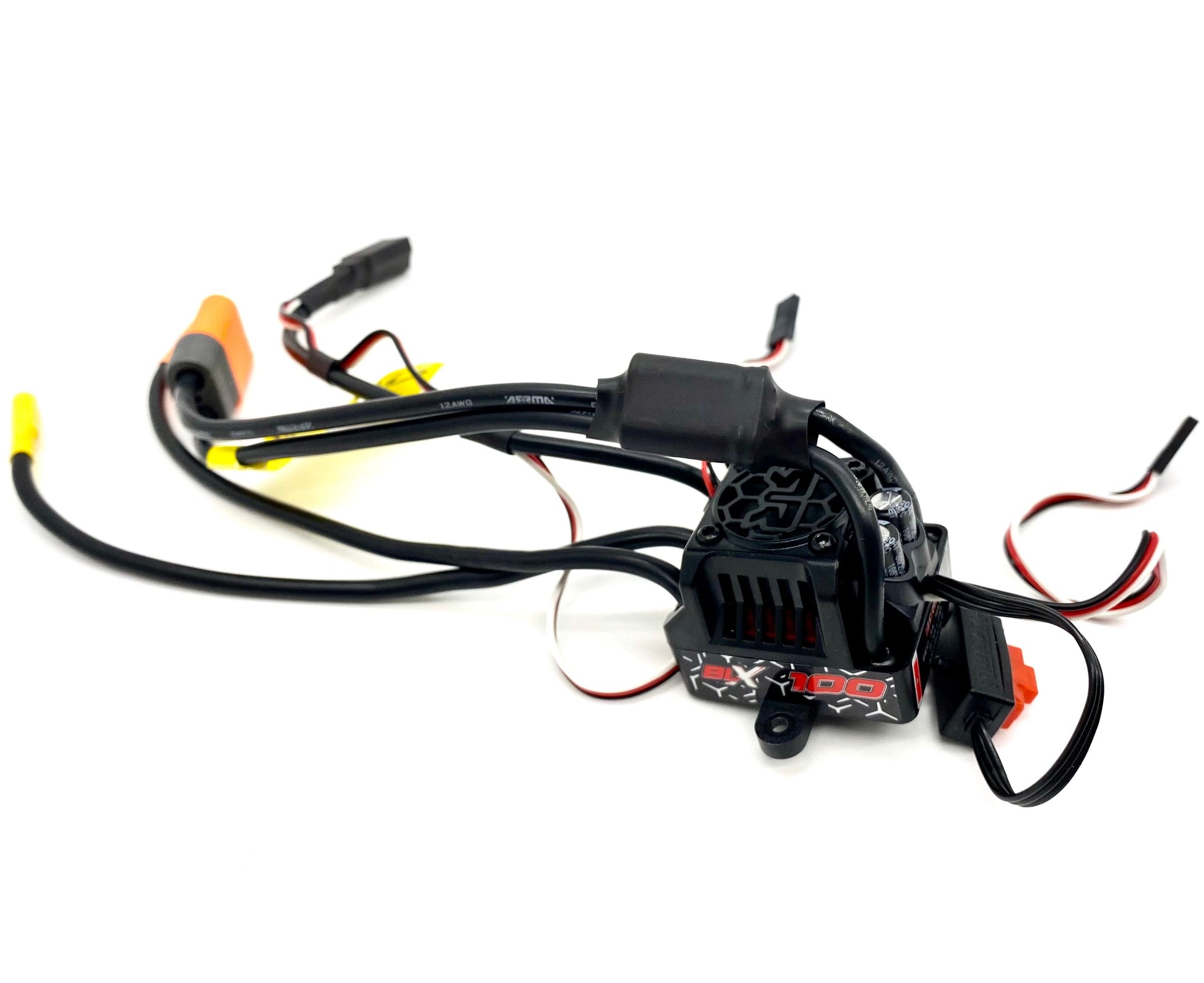

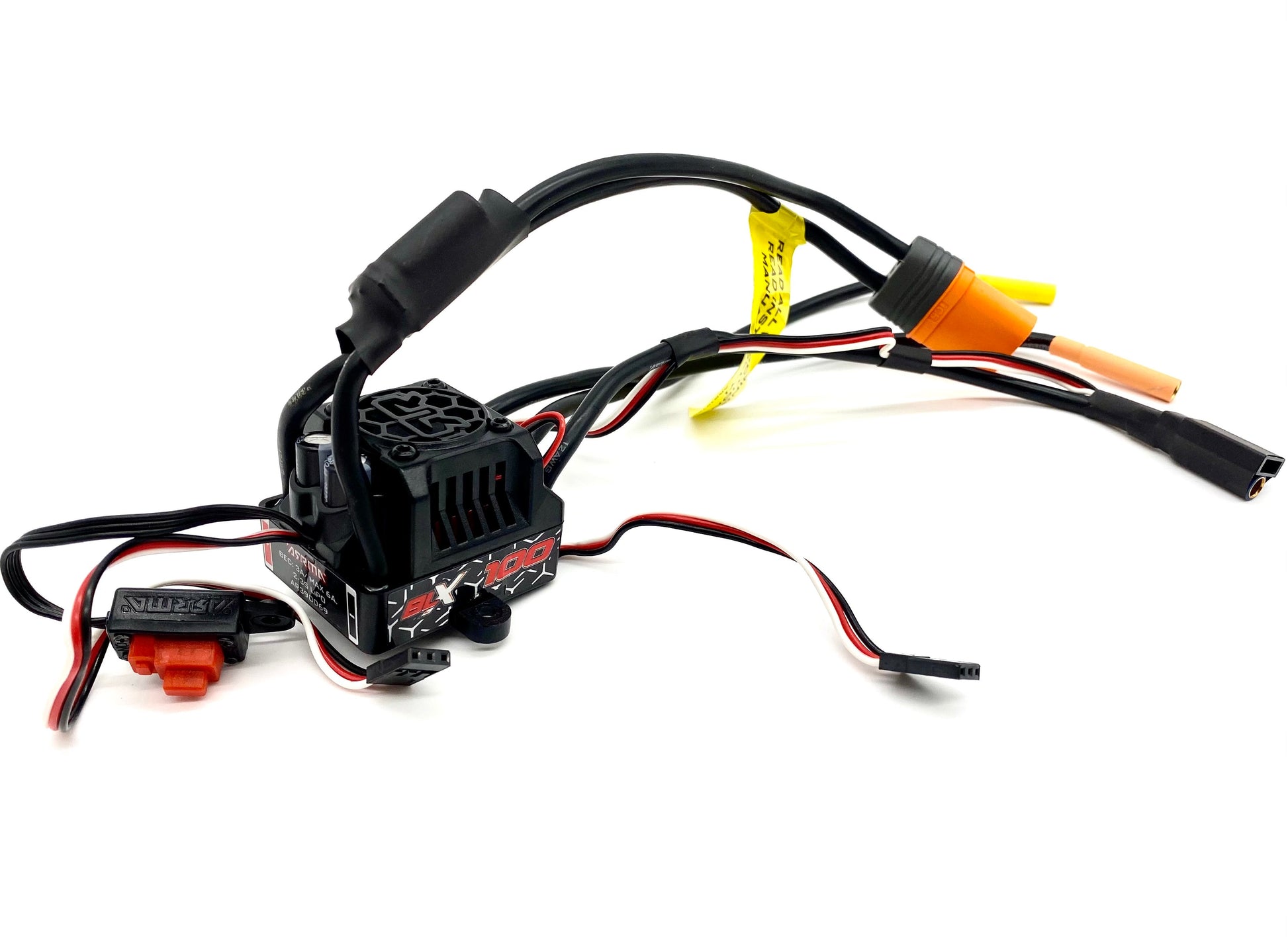

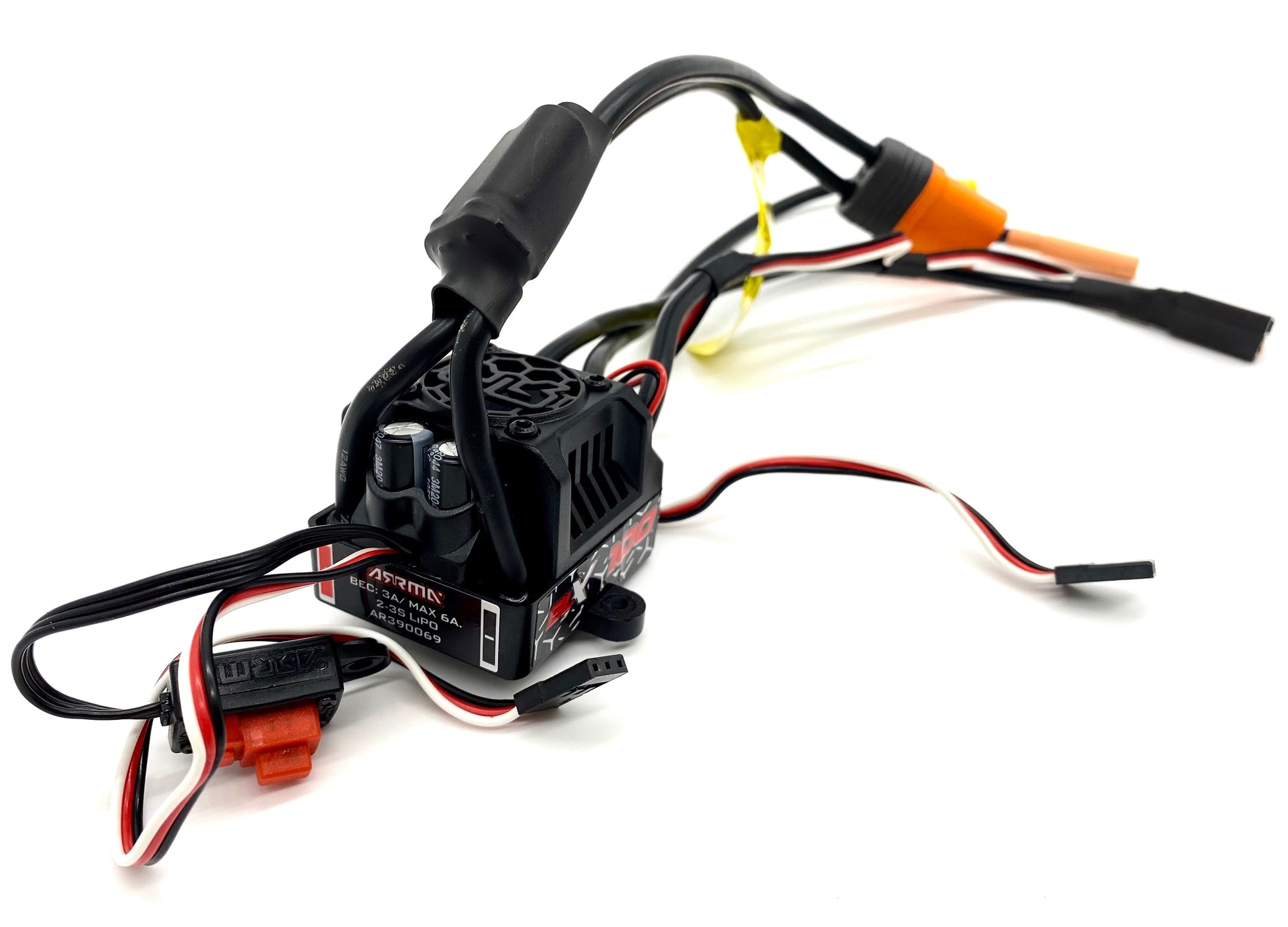

AR390069 - BLX100 100A waterproof ESC is 3S LiPo ready!

SPEC's

Battery usage;  2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC);  3.4V per cell
Thermal Protection Temperature;  125°C / 257°F
Over-Voltage Protection;  Over 12.6V
BEC Voltage;  6V
BEC Current;  4A
ESC Length;  43mm / 1.69"
ESC Height;  34mm / 1.34"
ESC Width;  54.5mm / 2.15" (Including hold-down tabs)
ESC Weight;  120g / 4.2oz
Receiver Wire Length;  170mm / 6.70"
Battery Wire Length;  125mm / 4.92"
Motor Wire Length (Including Connector);  200mm / 7.87"
Switch Length;  110mm / 4.33"
Switch Width;  12.8mm / 0.5"
Switch Height;  18mm / 0.71"
Motor Bullet Connector Size;  4mm / 0.16"
Wire Specifications ; 12AWG
ESC Battery Connector Type;  EC5

TERMS OF SALE

GENERAL TERMS

Part numbers in the listing are for reference, your order will come as pictured. Our RC products are removed from new models and will come enclosed in our own packaging. Because some parts may be removed from new assembled models, minor markings or factory filled fluids may be present.

If the screws are pictured, they are included. If not, they are most likely sold separately in our hardware set for that model.

We guarantee parts will be new and functional upon arrival, but we cannot provide any warranty service after usage. The original manufacturers warranty will not be valid in most cases.

RETURNS POLICY

 No Returns
